General Requirement

The room in which the Workstation will be installed must meet the following criteria:

  • Operating Temperature: 10ºC to 35ºC (50º to 95º F)
  • Operating Relative Humidity: 20% to 95% (non-condensing)
  • Door width: > 0.8 m
  • Power supply
       Power consumption varies from machine model.

            AC Input: 100-240 V, 50-60 Hz


Noise Control:

The machine will be very noisy due to high speed fans when full loaded.

Recommend put it away from office/working table.

If have to locate it in office due to limitation of space, one soundproof cabinet is strongly recommended to cancel noise to reach comfortable level.  Please consult sales@singleparticle.com if you like to purchase one soundproof cabinet.




Peripherals:

Machine can be accessed remotely with your PC. Thus peripherals are not necessary in this condition.

If you prefer to operate it on site, please prepare Keyboard、Mouse、Monitor(with HDMI port)in advance by yourself.

Specific Requirements

For specific model, the power supply requirements are unique.

Please check it out and make sure power supply capacity is sufficient.

If have any doubts, please contact us at support@singleparticle.com.




Model:PCS-M79


Power: Redundant 2000 W(1+1) power supply, 80Plus Platinum level. Connect each power cable to separated circuit socket.

Network: LAN ports 10 Gbps(RJ45), connect to the left RJ45(from rear view, refer to diagram below.).

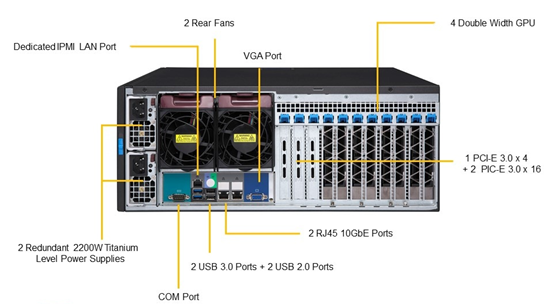

Rear View of PCS-M79



Model:PCS-M49


Power: Redundant 2000 W (2+2) power supply. Connect each power cable to separated circuit socket.

Network: LAN ports 10 Gbps(RJ45), connect to the left RJ45(from rear view).

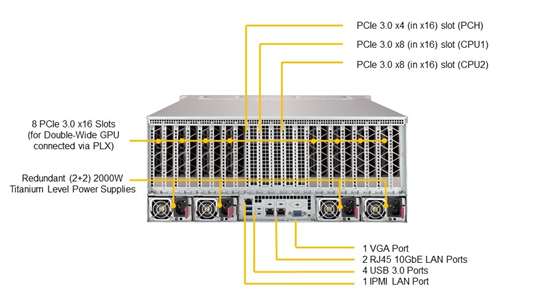

Rear View of PCS-M49



Model:PCS-S79

Power: 2000 W power supply, 80Plus Platinum level. Connect each power cable to separated circuit socket.

Network: LAN ports 10 Gbps(RJ45), connect to the upper RJ45(from rear view).

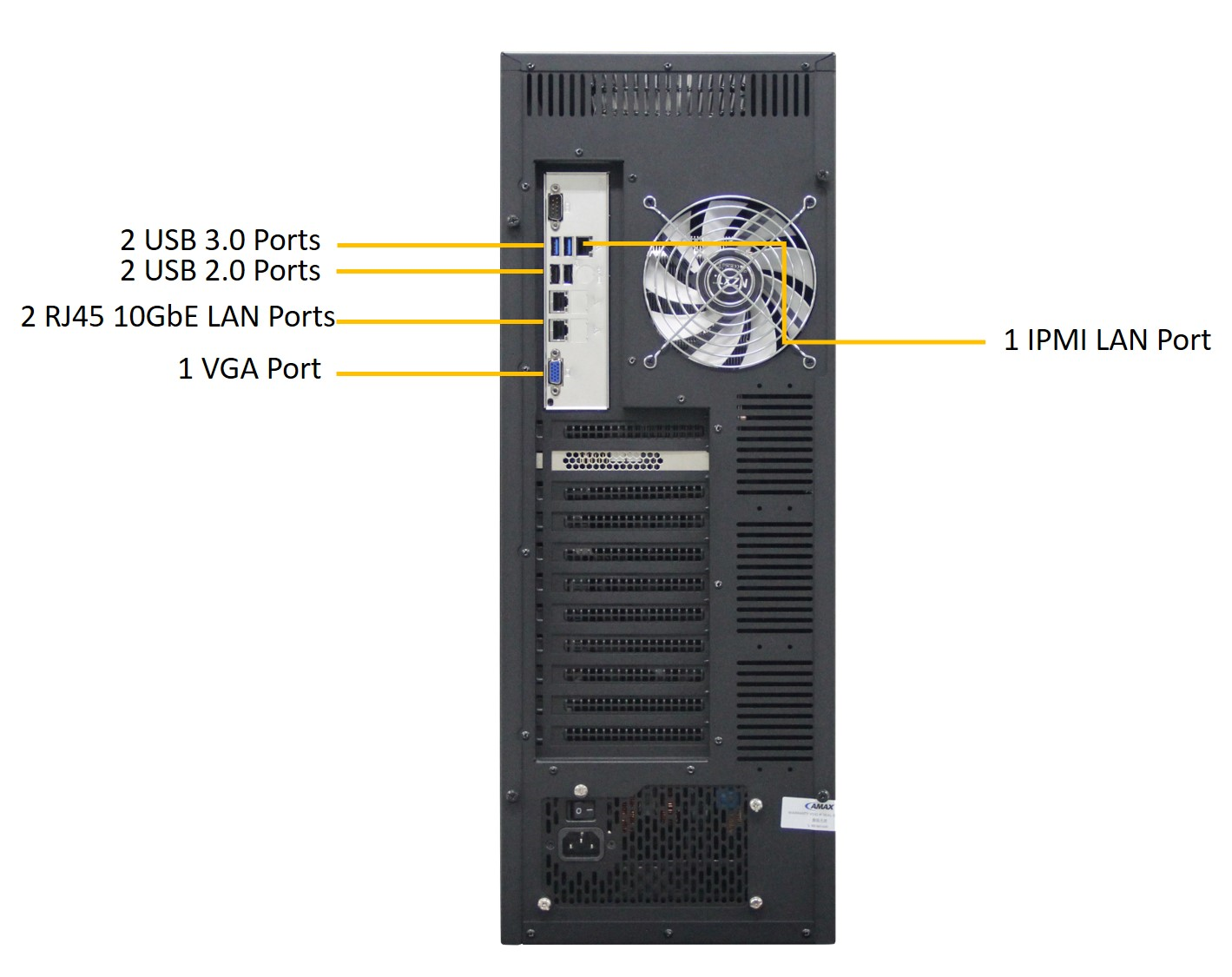

Rear View of PCS-S79



Model:PCS-G41

Power:Redundant 2200 W(2+1) power supply. Connect each power cable to separated circuit socket.

Network:LAN ports 10 Gbps(RJ45), connect to the upper RJ45(from rear view).

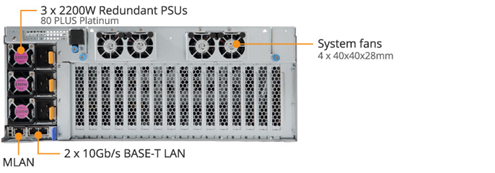

Rear View of PCS-G41
